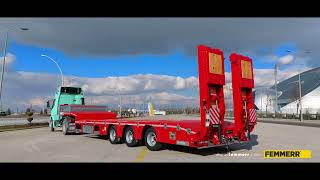

جديدة العربات نصف المقطورة عربة مقطورة مسطحة منخفضة Femmerr 3 AXLE LOWBED / READY FROM STOCKS

3 AXLE LOWBED TRAILER TECHNICAL DETAILS

Load capacity : 44 Ton
Platform Length : 9.350 mm
Total Length : 13.600 mm
Platform Height : 900 mm
2x9 Pcs Side extension 250 mm on each side, total width when open 3000 mm
King pin height 1200 mm
Pine Woods on surface
Lashing hooks on each sides ( 2x8 Pcs )

Loading Ramp;
Foldable Ramps and hydraulic slidable to the sides
Foldable Ramp dimensions 2070+1250 mm,
Width 800 mm
24 Volt HYVA ( German Brand ) electro hydraulic power pack with oil tank

Axles and Brakes;
Trax Brand 3 x 12.000 kg capacity axle;
Last axle self steering, First Axle Liftable with manual button
Knorr Bremse EBS 2S/2M

Tires and Rims;
(J) type,
12 x 245/70 R17,5” with TPMS (Tyre Pressure Management System)

Accessories;
2 pcs equipped with led lamp, galvanised, red an White warning signs,
Fire tube box, Pine Woods on surface of loading with Checkered steel
2 king-pin place ; 1 pieces detachable type 2 inch King-pin, conforming to the standards (for 6x4 trucks)

Electrical System ;
24 V, Aspöck Brand LED
2 pcs of working and rear lights on rear ( works with reverse gear )
4 pieces side expanding RED+WHITE warning reflector plates with lights,
1 x Rotating Lamp

Paint and Sand Blasting;
Sandblasting
3 layers of epoxy primer
2 layers acrylic 100 μm staining

COMMERCIAL:
Product Definition : 3 Axle Lowbed Trailer
1 Unit Price : 34.250 EUR / EXW TURKIYE

4 UNITS READY IN STOCKS
1 UNIT BLACK COLOR
2 UNITS RED COLOR
1 UNIT BLUE COLOR
