جديد عربة الصهريج لنقل المواد الغذائية Letina C314F1R0

Tank Semi-Trailer for Transport of Food-Grade Liquids

Model: C314F1P0 – 4 compartments

Description:
Tank semi-trailer for transporting liquid food products, made of stainless steel, with a total capacity of 31,000 liters, divided into 4 compartments (9,000 L + 6,000 L + 5,000 L + 11,000 L). Thermally insulated according to ATP certification, suitable for operation at atmospheric pressure.
Tank Specifications
• Material: Stainless steel AISI 304 (DIN 1.4301)
• Volume: 31,000 liters (+/- 2%)
• Compartments: 4 (9,000 L / 6,000 L / 5,000 L / 11,000 L)
• Inner rings: Stainless steel
• Manholes:
o 4 × DN500 filling manholes with covers
o Each cover is equipped with 1 bolt closure, safety breathing valve
o Each cover is equipped with safety system against accidental closure on each manhole cover
• Spill Boxes:
o Located on top of the tank (4 units)
o Made of stainless steel, insulated
o Each box fitted with insulated hinged lids with locks
• Insulation & Cladding:
o Tank body: 50 mm polyurethane
o Tank heads: 100 mm glass wool
o Outer cladding: Stainless steel
o Bottom head covers: Fiberglass
• CIP Cleaning System:
o Washing system with 6 independent spray heads (2+1+1+2)
o Additional valve at CIP connection for draining remaining cleaning liquid
o Additional valve on top for washing
• Catwalk:

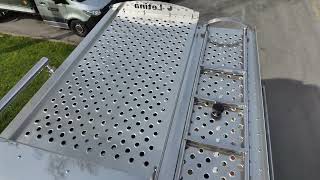

o Aluminium anti-slip walkway along the top and around manholes
• Handrails:
o Folding stainless-steel handrails, operated from the lower section of the access ladder
• Access Ladder:
o Stainless steel, non-slip steps, located at the rear right side
• Ladder: for entering in the tank

Discharge System
• Bottom Valves: 4 × DN100, manually operated from the top
• Outlet Valve: 1 × DN100 butterfly valve, manually operated at the rear
• Discharge Pipe: DN100 stainless steel, insulated and covered with black tape, rear outlet
• Outlet Protection Box: Stainless steel, mounted at the rear above the bumper, dimensions 1030 × 420 × 400 mm

Chassis
• Model: Berger Ecotrail SATA 10.5 – galvanized
• Gross weight / technical permissible: 35,000 / 39,000 kg
• Fifth wheel height: 1,150 mm
• Frame: Welded construction from fine-grain steel S700
• Tyres: Continental 385/65 R 22.5, Alcoa Dura Bright aluminium rims
• Axles: SAF, ET 120, integral disc brakes
• Lift axle: Wabco, fully automatic; lifting only during driving above 16 km/h
• TPMS: SCB CTU (tyre pressure monitoring for 6 wheels)
• Mudguards: With splash flaps on all wheels
• Brake system: Wabco EBS, generation E, 2S/2M, spring parking brake with double release valve
• Suspension: Conventional air suspension with rotary valve
• RTR: Reset-to-Ride automatic return to driving height
• Landing legs: Jost brand, with thrust compensation
• Stainless-steel package: Mudguard brackets, socket holders, folding indicator brackets
• Wheel chocks: 2 pcs with holders
• Side protection: Fixed-mounted, natural anodized aluminium
• Sockets on front bracket: 2 × 7-pin and 1 × 15-pin (DIN ISO 3731/12098)
• Lighting system: 24 V, Hella type, multifunctional rear lights (including fog and reverse), 2 LED position lights with rubber arms, 2 LED front position lights, 4 pairs of LED side marker lights
• Spare wheel holder: With winch, in front of the first axle on the right side
